Industrial Power
Sentry-2412
Industrial battery monitoring 120 – 300V DC
ST2412
Built for critical power

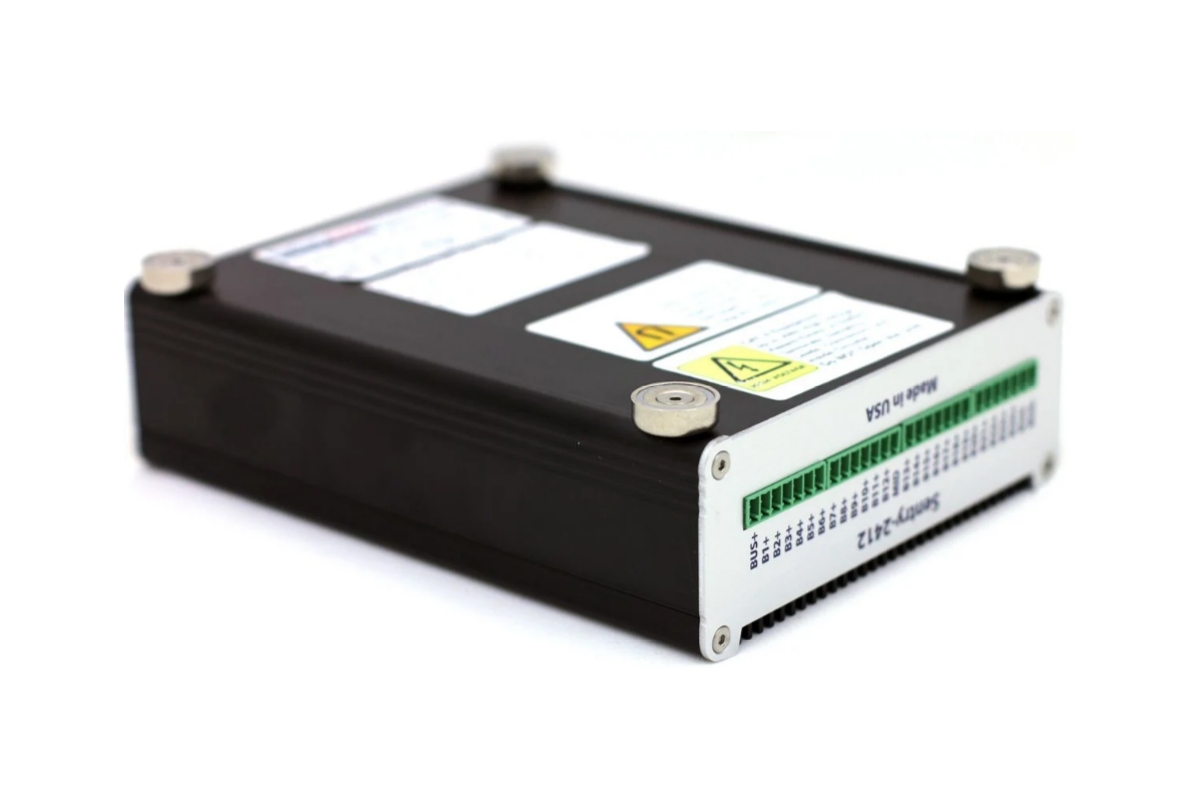

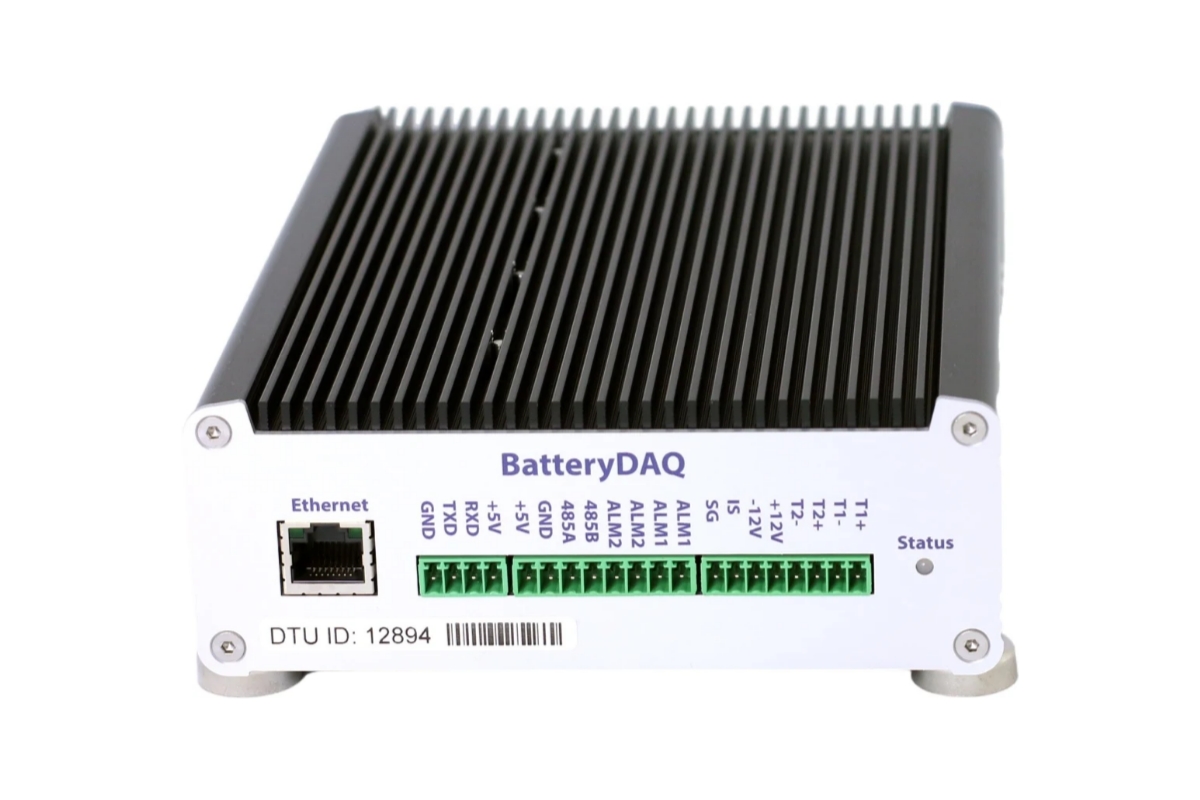

The Sentry-2412 is an industrial grade battery health monitoring system designed for a wide range (100 to 350V) of UPS systems and utility switchgear DC applications. This compact unit combines superior data quality with a flexible and streamlined installation, which makes it suitable for server rooms, data centers, refineries, railroads, substations, as well as numerous other industrial applications.
IEEE standard reference:
IEEE-1188, IEEE Recommended Practice for Maintenance, Testing, and Replacement of Valve-Regulated Lead-Acid (VRLA) Batteries for Stationary Applications
IEEE-1184, IEEE Guide for Batteries for Uninterruptible Power Supply Systems
IEEE 1491-2012 IEEE Guide for Selection and Use of Battery Monitoring Equipment in Stationary Applications
KEY Features
Thermal runaway detection and prevention
Precise IR. Sufficient precision for high capacity Lead Acid or Nickel Cadmium batteries while used for multi-cell monitoring
High Noise Immunity. Accurate measurement on high ripple ups systems

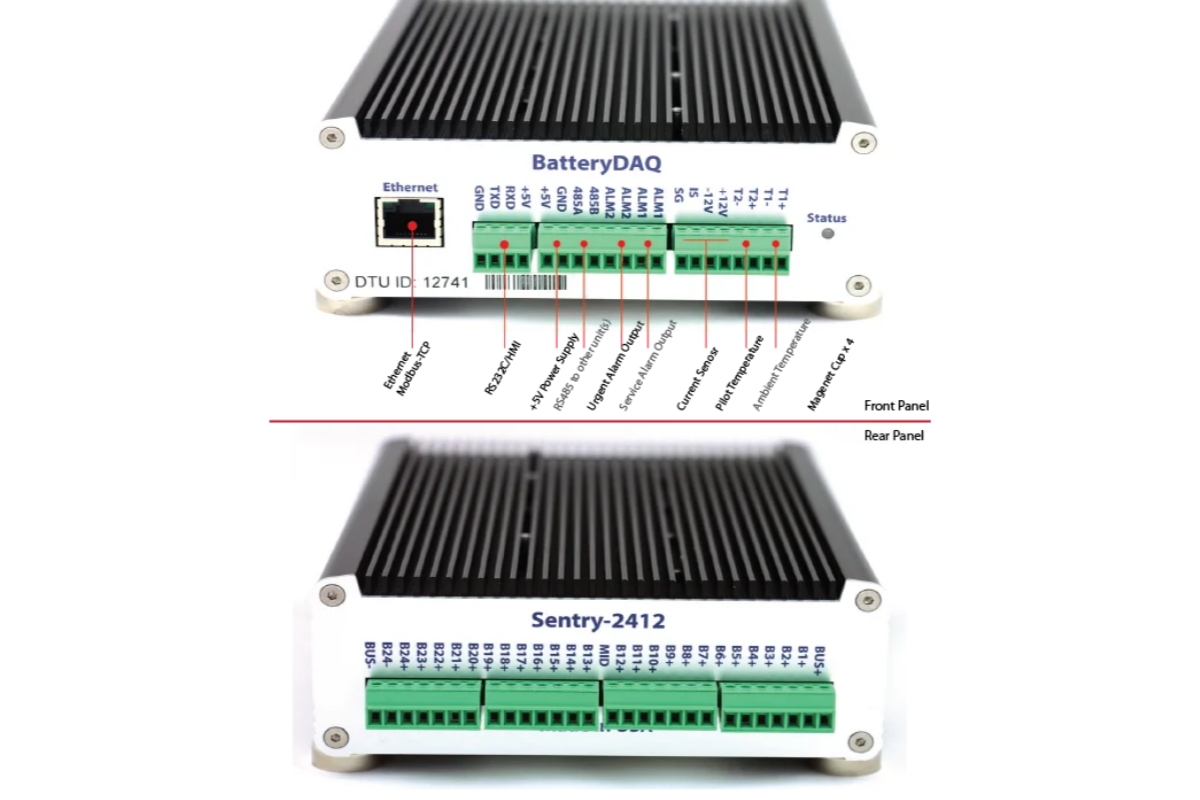

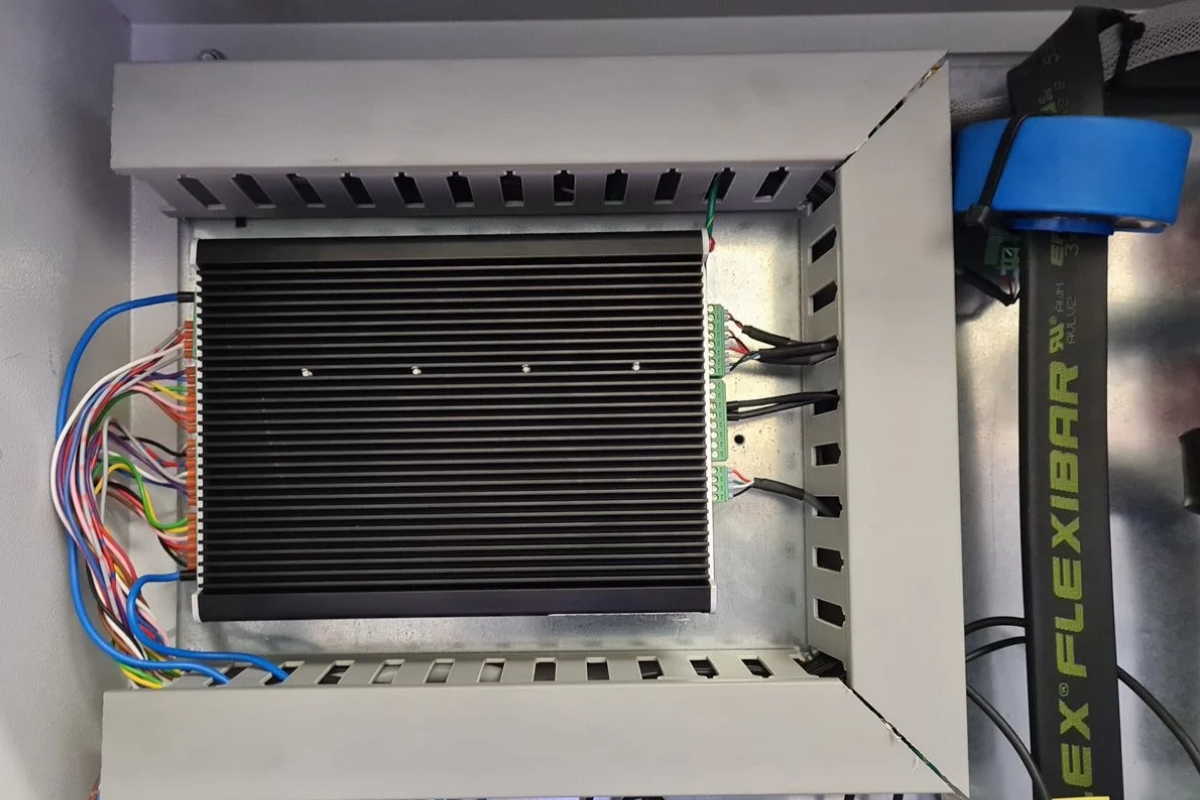

Easy to Install. Simplified connection: one wire per battery, plus three IR wires for one string. Easy to set for any number of cells for multi-cell applications. (For example, 87 x 1.2V NiCad, 21 channel with 4-cell and last channel 3-cell.)
Easy integration to existing site management software
Access Data/Alarm from Anywhere. Ethernet or Cellular IoT.
